Products
Forged and machined components for tractors, combines, commercial
vehicles and construction machinery.
Ten product families for transmission, final-drive, planetary, axle and hydraulic systems — from forged blank to ground tooth flank.
Bull Gears
Final drive · Tractors, combines

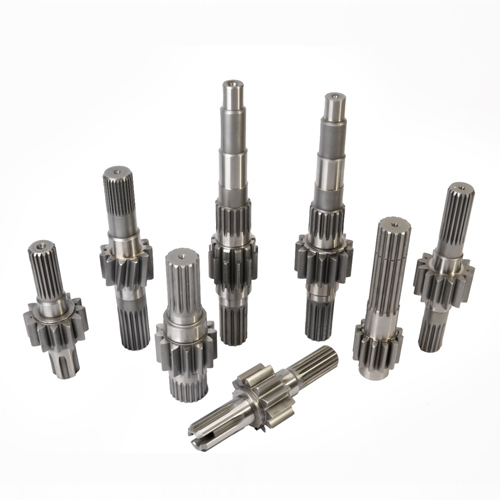

Bull Pinion Shafts
Final drive · Tractors
Transmission
Solid Shafts
Gearbox · Tractors, CV
Hollow Shafts
Gun-drilled · Hydraulic transmissions
Ground Gears & Shafts
DIN 6–7 · ICE & EV transmissions
Planetary Ring
Gears & Shafts
Torque hubs · Wheel loaders
Drive Spindles
Wheel drives · Scissor lifts
Axle & Chassis Levers
Steering · Suspension
Hydraulic Lift
& Rocker Arms
Tractor hydraulic lifts

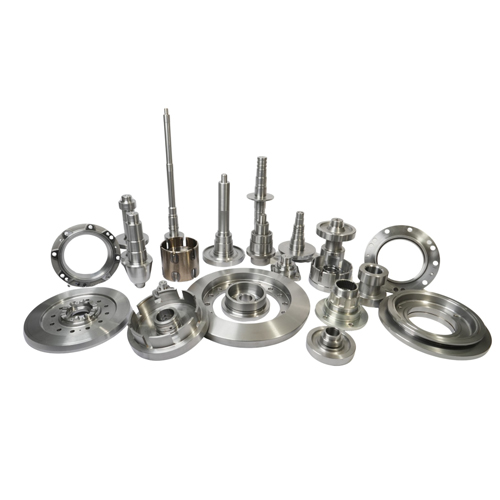

Precision
Machined Shafts
Differential · Engine
PRODUCT FAMILIES
What we make, and
what it goes into.
| PRODUCT FAMILY | AGGREGATES / ASSEMBLIES | END-USE VEHICLES |
|---|---|---|
| Bull gears & bull pinion shafts | Final reduction drive | Tractors, harvester combines |
| Transmission gears and shafts | Transmission gearbox | Tractors, backhoe loaders, excavators, commercial vehicles |
| Teeth ground gears | ICE & EV transmissions and axles | Commercial vehicles, electric buses and trucks, heavy mobile cranes, heavy fork-lifts, all-terrain vehicles, mining trucks |
| Planet gears and ring gears | Planetary drives, torque hubs, axles, final drives | Tractors, wheel loaders, soil compactors, road rollers, commercial vehicles, telehandlers, heavy fork-lifts |
| Output flanges and spindles | Transmissions, axles, wheel drives | Commercial vehicles, electric scissor lifts, electric telehandlers |
| Steering arms, levers and knuckle assemblies | Steering mechanisms | Tractors, harvester combines |
| Relay drop arms, track rod levers, bell-crank | Steering and tandem-axle suspension | Commercial and multi-axle vehicles |
| Hydraulic parts | Hydraulic lifts for agricultural implements | Tractors, harvester combines |
GEAR MANUFACTURING CAPABILITY
Module, diameter, quality
and process by gear type.
| SHAVED GEARS | GROUND GEARS | SHAFTS (SHAVED & GROUND) | EPICYCLIC RING GEARS | |
|---|---|---|---|---|
| Type | Spur and helical | Spur and helical | Solid, hollow, splined, geared | Internal helical / spur |
| Max module | 8.0 mm | 8.0 mm | 8.0 mm | 5.0 mm (skiving) · 6.0 mm (shaping) |
| Max diameter | 500 mm | 380 mm | 250 mm | 400 mm |
| Gear quality | DIN 8 – 9 | DIN 6 – 7 | DIN 8 – 9 | DIN 8 – 9 |
| Max length | — | — | 800 mm | 110 mm (skiving) · 80 mm (shaping) |
| Gun drilling | — | — | Ø8–35 mm, axial and offset, to 1,000 mm | — |
